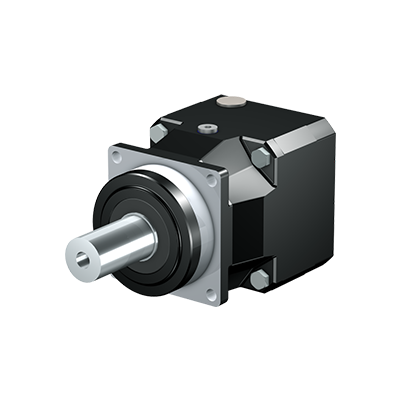

- Solid shaft with key
- Solid shaft without key
Bearing Design
- Normal bearings
- Reinforced bearings for higher axial load capacity (option)
- Reinforced bearings for higher radial load capacity (option)
Mounting Positions
- Any mounting position.
Lubricants and Maintenance
- Synthetic lubricant CLP HC ISO VG 150
- Lubricated for life
- Maintenance-free
Paint Finish
Black RAL 9005
Motor Adapter ME
- Universal motor mounting system for almost all synchronous servo motors.
- Option large (MEL) for large motors.
- Fast and secure motor mounting.
- Robust, balanced coupling.
- Thermal length compensation.
- Low mass inertia.
EasyAdapt
Option ServoStop
- Integrated in the motor adapter, electrically released spring-loaded brake.
- When the power is removed, in the event of a power failure or an emergency stop ServoStop will brake both drive and machine shaft safely and reliably.
- Zero-backlash plug-in coupling.
ServoStop Motor Adapter with Brake
Option ServoCool
- Ventilation system for motor adapters ME and MF.
- With integrated radial fan.
- Allows operation at higher speeds or higher surrounding temperatures or helps reduce the temperature on the axis.
- Universal motor mounting system for almost all synchronous servo motors.
- Option "large" for large motors.
- Fast and secure motor mounting.
- Integrated clamp coupling for motor shafts without key.
- Robust, balanced coupling.
- Thermal length compensation.
Motor Adapter with Radial Ventilator
Recommendation Motor
EZ synchronous servo motors
For further information see Synchronous Servo Motors
|
Type |
Ratio |
Max. perm. acceleration torque [Nm] |
Max. perm. input speed in cyclic operation [1/min] |
Backlash [arcmin] |
Torsional stiffness [Nm/arcmin] |
|
P221 |
4 – 10 |
18 – 22 |
8000 |
6 |
1.6 – 1.9 |
|
P222 |
16 – 100 |
18 – 22 |
8000 |
8 |
1.6 – 1.8 |
|
P321 |
3 – 10 |
50 – 65 |
6000 – 8000 |
4 |
4 – 5.5 |
|
P322 |
12 – 100 |
50 – 65 |
8000 |
5 |
3.9 – 4.6 |
|
P421 |
3 – 10 |
100 – 120 |
5500 – 7000 |
4 |
8.9 – 12 |
|
P422 |
12 – 100 |
100 – 120 |
6500 – 8000 |
5 |
8.8 – 11 |
|
P521 |
3 – 10 |
200 – 300 |
4500 – 6500 |
3 |
25 – 33 |
|
P522 |
12 – 100 |
200 – 300 |
6000 – 7000 |
4 |
24 – 28 |
|
P721 |
3 – 10 |
431 – 700 |
3700 – 6000 |
3 |
49 – 59 |
|
P722 |
12 – 100 |
500 – 700 |
5000 – 6500 |
4 |
49 – 53 |
|
P821 |
3 – 10 |
964 – 1600 |
3000 – 4500 |
3 |
149 – 202 |
|
P822 |
12 – 100 |
1200 – 1600 |
4500 – 6000 |
4 |
148 – 171 |
|
P921 |
4 – 10 |
2000 – 3000 |
3000 – 4000 |
3 |
258 – 349 |
|
P922 |
16 – 100 |
2000 – 3000 |
3500 – 4500 |
4 |
256 – 339 |
