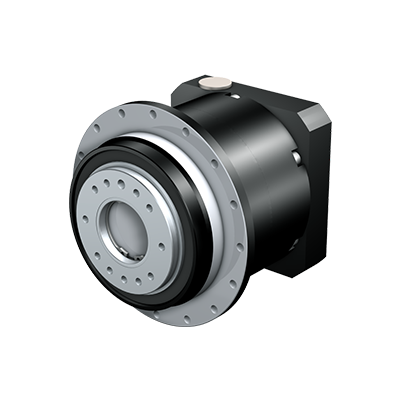

Flange shaft
Bearing Design
Pretensioned angular contact bearings at the output in an O-arrangement, ideally suited for helical geared rack and pinion drive.
Mounting Positions
- Any mounting position.
Lubricants and Maintenance
- Synthetic lubricant CLP HC ISO VG 150
- Lubricated for life
- Maintenance-free
Paint Finish
Black RAL 9005
Motor Adapter MF
- Universal motor mounting system for almost all synchronous servo motors.
- Option large (MFL) for large motors.
- Fast and secure motor mounting.
- Robust, balanced coupling.
- Thermal length compensation with flexible bellows coupling.
FlexiAdapt
Option ServoStop
- Integrated in the motor adapter, electrically released spring-loaded brake.
- When the power is removed, in the event of a power failure or an emergency stop ServoStop will brake both drive and machine shaft safely and reliably.
- Zero-backlash plug-in coupling.
ServoStop Motor Adapter with Brake
Option ServoCool
- Ventilation system for motor adapters ME and MF.
- With integrated radial fan.
- Allows operation at higher speeds or higher surrounding temperatures or helps reduce the temperature on the axis.
- Universal motor mounting system for almost all synchronous servo motors.
- Option "large" for large motors.
- Fast and secure motor mounting.
- Integrated clamp coupling for motor shafts without key.
- Robust, balanced coupling.
- Thermal length compensation.
Motor Adapter with Radial Ventilator
Recommendation Motor
EZ synchronous servo motors
For further information see Synchronous Servo Motors
|
Type |
Ratio |
Max. perm. acceleration torque [Nm] |
Max. perm. input speed in cyclic operation [1/min] |
Backlash [arcmin] |
Torsional stiffness [Nm/arcmin] |
|
PHA321 |
5 – 10 |
50 – 65 |
6000 |
2 |
11 – 15 |
|
PHA322 |
20 – 100 |
50 – 65 |
8000 |
2 |
12 – 15 |
|
PHA421 |
4 – 10 |
100 – 130 |
5000 – 6000 |
1 |
21 – 35 |
|
PHA422 |
16 – 100 |
100 – 130 |
6500 – 8000 |
1 |
20 – 29 |
|
PHA521 |
4 – 10 |
250 – 320 |
5000 – 6000 |
1 |
53 – 85 |
|
PHA522 |
16 – 100 |
250 – 320 |
6000 – 7000 |
1 |
52 – 70 |
|
PHA721 |
4 – 10 |
500 – 700 |
4000 – 5000 |
1 |
113 – 167 |
|
PHA722 |
16 – 100 |
500 – 700 |
5000 – 6500 |
1 |
112 – 148 |
|
PHA821 |
4 – 10 |
1200 – 1700 |
3500 – 4000 |
1 |
302 – 433 |
|
PHA822 |
16 – 100 |
1200 – 2000 |
4500 – 6000 |
1 |
304 – 479 |
|
PHA932 |
12 – 60 |
3701 – 5000 |
3000 – 4500 |
1 |
1046 – 1142 |
