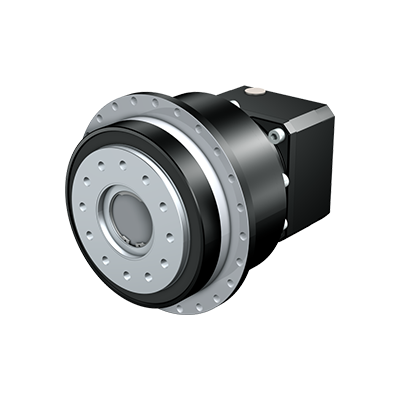

PHQ Series
Quattro power due to four-planet system. Helical gearing. Highest torsional and tilting stiffness. Backlash up to < 3 arcmin. Flange output shaft. Short motor adapter length. Easy and secure motor mounting. Can be attached to almost any make of servo motor.


  • 产品简介
  • 产品特点
  • 产品规格
  • 产品尺寸
  • 资料下载
Shaft Designs


Flange shaft
Bearing Design


Pretensioned angular contact bearings at the output in an O-arrangement, ideally suited for helical geared rack and pinion drive.
Mounting Positions


- Any mounting position.
- You can find the explanation of the mounting positions and the respective quantities of lubricant in the document Quantity of lubricant for gear units ID 441871
Lubricants and Maintenance


- Synthetic lubricant CLP HC ISO VG 150
- Lubricated for life
- Maintenance-free
Paint Finish


Black RAL 9005
Motor Adapter ME


- Universal motor mounting system for almost all synchronous servo motors.
- Option large (MEL) for large motors.
- Fast and secure motor mounting.
- Integrated EasyAdapt® clamp coupling for motor shafts without key.
- Robust, balanced coupling.
- Thermal length compensation.
- Low mass inertia.
EasyAdapt
Option ServoStop


- Integrated in the motor adapter, electrically released spring-loaded brake.
- When the power is removed, in the event of a power failure or an emergency stop ServoStop will brake both drive and machine shaft safely and reliably.
- Zero-backlash plug-in coupling.
ServoStop Motor Adapter with Brake
Recommendation Motor


EZ synchronous servo motors
For further information see Synchronous Servo Motors

Type

Ratio

Max. perm. acceleration torque [Nm]

Max. perm. input speed in cyclic operation [1/min]

Backlash [arcmin]

Torsional stiffness [Nm/arcmin]

PHQ421

5.5

170

6000

3

38 – 39

PHQ422

22 – 55

170

6500 – 8000

3

35 – 37

PHQ521

5.5

425

5500

3

92 – 99

PHQ522

22 – 55

425

6000 – 7000

3

87 – 94

PHQ721

5.5

950

5000

3

197 – 213

PHQ722

22 – 55

950

5000 – 6500

3

195 – 205

PHQ723

88 – 550

950

6000 – 7000

3

195 – 204

PHQ822

22 – 55

2600

4500 – 6000

3

611 – 649

PHQ823

88 – 550

2600

5000 – 6500

3

611 – 646

PHQ932

18 – 60

5551 – 6000

3000 – 4500

3

1144 – 1220

PHQ933

72 – 600

6000

4500 – 6000

3

1144 – 1205

PHQ1032

24 – 60

10000

3000 – 4000

3

1970 – 2062

PHQ1033

96 – 600

10000

3500 – 4500

3

1969 – 2067

PHQ1132

24 – 60

22000

2800 – 3800

3

3460 – 3538

PHQ1133

96 – 300

22000

3500 – 4500

3

3489 – 3528

PHQ1232

24 – 42

43000

3000 – 3500

3

6236 – 6248

PHQ1233

96 – 420

33620 – 43000

3000 – 4000

3

6136 – 6271
