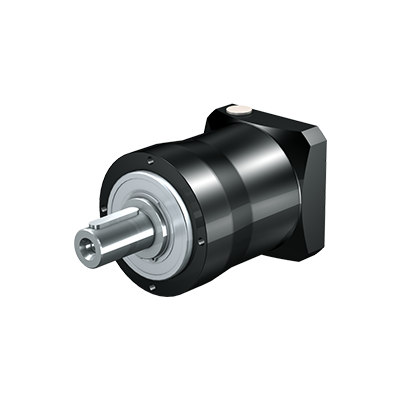

PE Series
Economical alternative to the P series. For use in automation and robotics. Helical gearing. Robust solid shaft. Short motor adapter length. Easy and secure motor mounting. Can be attached to almost any make of servo motor.


  • 产品简介
  • 产品特点
  • 产品规格
  • 产品尺寸
  • 资料下载
Shaft Designs


- Solid shaft with key
- Solid shaft without key
Mounting Positions


- Any mounting position.
Lubricants and Maintenance


- Synthetic high performance gear grease
- Lubricated for life
- Maintenance-free
Paint Finish


Black RAL 9005
Motor Adapter ME


- Universal motor mounting system for almost all synchronous servo motors.
- Option large (MEL) for large motors.
- Fast and secure motor mounting.
- Robust, balanced coupling.
- Thermal length compensation.
- Low mass inertia.
EasyAdapt
Recommendation Motor


EZ synchronous servo motors


For further information see Synchronous Servo Motors

Type

Ratio

Max. perm. acceleration torque [Nm]

Max. perm. input speed in cyclic operation [1/min]

Backlash [arcmin]

Torsional stiffness [Nm/arcmin]

PE211

4 – 10

13 – 15

8000

10

1.1 – 1.4

PE212

16 – 100

13 – 15

8000

13

1.1 – 1.4

PE311

3 – 10

37 – 42

6000

8

3.2 – 4.1

PE312

12 – 100

37 – 55

6000

10

3.4 – 4.2

PE411

3 – 10

90 – 100

5500 – 6000

8

10 – 13

PE412

12 – 100

90 – 120

5500 – 6000

10

10 – 14

PE511

3 – 10

180 – 250

4500 – 5000

8

27 – 33

PE512

12 – 100

220 – 310

4500 – 5000

10

27 – 35
