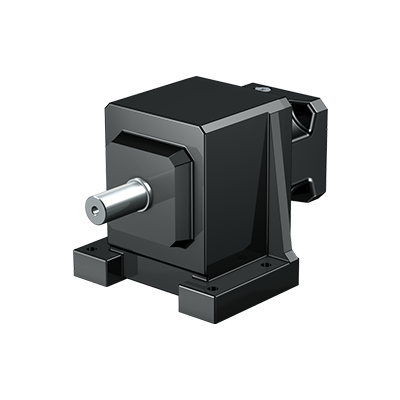

C Series
Many housing styles to match almost any mounting requirement. Helical gearing. Robust solid shaft. Short motor adapter length. Easy and secure motor mounting. Can be attached to almost any make of servo motor.


  • 产品简介
  • 产品特点
  • 产品规格
  • 产品尺寸
  • 资料下载
Shaft Designs


- Solid shaft with key
- Solid shaft without key (C0 - C5, starting at C6 on request)
Housing Designs


- Pitch circle diameter
- Round flange
- Square flange
- Foot
Mounting Positions


- Any mounting position.
- You can find the explanation of the mounting positions and the respective quantities of lubricant in the document Quantity of lubricant for gear units ID 441871
Lubricants and Maintenance


- Mineral lubricant CLP ISO VG 220
- Option: Synthetic lubricant CLP HC ISO VG 220


Under normal operating conditions no lubricant change is required for gear unit size C0 to C5 (lubricated for life).
We recommend a change of lubricant for gear unit size C6 to C9 after approx. 10,000 hours of operation.
Paint Finish


Black RAL 9005
Motor Adapter ME


- Universal motor mounting system for almost all synchronous servo motors.
- Option large (MEL) for large motors.
- Fast and secure motor mounting.
- Integrated EasyAdapt® clamp coupling for motor shafts without key.
- Robust, balanced coupling.
- Thermal length compensation.
- Low mass inertia.
EasyAdapt
Option ServoStop


- Integrated in the motor adapter, electrically released spring-loaded brake.
- When the power is removed, in the event of a power failure or an emergency stop ServoStop will brake both drive and machine shaft safely and reliably.
- Zero-backlash plug-in coupling.
ServoStop Motor Adapter with Brake


Recommendation Motor
EZ synchronous servo motors
For further information see Synchronous Servo Motors

Type

Ratio

Max. perm. acceleration torque [Nm]

Max. perm. input speed in cyclic operation [1/min]

Backlash [arcmin]

Torsional stiffness [Nm/arcmin]

C002

2 – 70

36 – 72

5000 – 6000

16 – 20

1.1 – 1.6

C102

2 – 70

36 – 138

4000 – 6000

15 – 18

2.5 – 3.9

C103

82 – 276

138

6000

15

3.9

C202

2 – 70

67 – 230

4000 – 6000

14 – 17

4.7 – 8.3

C203

80 – 275

230

5000 – 6000

14

8.3

C302

2 – 70

104 – 400

3500 – 5000

13 – 16

6.2 – 8.7

C303

80 – 274

350 – 400

5000 – 5500

13

8.7

C402

2 – 70

130 – 600

3500 – 5000

12 – 15

13 – 22

C403

81 – 270

550 – 600

5000

12

22

C502

2 – 70

152 – 920

3000 – 4500

12 – 14

15 – 23

C503

81 – 271

850 – 920

4500

12

23

C612

4.2 – 69

501 – 1650

2800 – 4000

10

65 – 74

C613

49 – 266

913 – 1650

4000

10

74

C712

4.3 – 70

761 – 2760

2600 – 3600

10

102 – 122

C713

51 – 223

2256 – 2760

3500 – 3600

10

122

C812

6.7 – 69

1229 – 4800

2800 – 3400

10

133 – 204

C813

49 – 270

2486 – 4800

3400

10

203 – 204

C912

20 – 70

5518 – 7211

3000

10

260 – 392

C913

65 – 215

5628 – 8000

3000 – 3200

10

392 – 393
