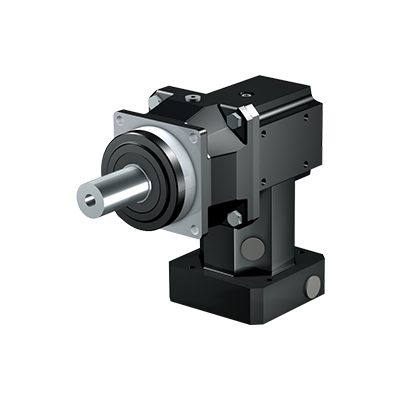

- Solid shaft with key
- Solid shaft without key
Bearing Design
- Normal bearings
- Reinforced bearings for higher axial load capacity (option)
- Reinforced bearings for higher radial load capacity (option)
Mounting Positions
- Any mounting position.
- You can find the explanation of the mounting positions and the respective quantities of lubricant in the document Quantity of lubricant for gear units ID 441871
Lubricants and Maintenance
- Synthetic lubricant CLP HC ISO VG 150
- Lubricated for life
- Maintenance-free
Paint Finish
Black RAL 9005
Motor Adapter MF
- Universal motor mounting system for almost all synchronous servo motors.
- Option large (MFL) for large motors.
- Fast and secure motor mounting.
- Robust, balanced coupling.
- Thermal length compensation with flexible bellows coupling.
FlexiAdapt
Recommendation Motor
EZ synchronous servo motors
For further information see Synchronous Servo Motors
|
Type |
Ratio |
Max. perm. acceleration torque [Nm] |
Max. perm. input speed in cyclic operation [1/min] |
Backlash [arcmin] |
Torsional stiffness [Nm/arcmin] |
|
P221_KX3_ |
4 – 30 |
18 – 22 |
4500 – 6000 |
7 – 8.5 |
1.5 – 1.7 |
|
P222_KX3_ |
32 – 300 |
18 – 22 |
4500 – 6000 |
8 – 8.5 |
1.6 – 1.8 |
|
P321_KX3_ |
3 – 30 |
38 – 63 |
4500 – 6000 |
5 – 7.5 |
2.5 – 3.7 |
|
P322_KX3_ |
32 – 300 |
50 – 65 |
4500 – 6000 |
5 – 5.5 |
3.9 – 4.5 |
|
P421_KX4_ |
3 – 30 |
73 – 120 |
4000 – 5500 |
5 – 7.5 |
5.2 – 8.4 |
|
P422_KX3_ |
32 – 300 |
100 – 120 |
4500 – 6000 |
5 – 5.5 |
8.8 – 10 |
|
P521_KX5_ |
3 – 30 |
183 – 300 |
3500 – 5000 |
4 – 6.5 |
14 – 23 |
|
P522_KX4_ |
32 – 300 |
250 – 300 |
4000 – 5500 |
4 – 4.5 |
24 – 27 |
|
P721_KX7_ |
3 – 30 |
364 – 650 |
3000 – 4000 |
4 – 6.5 |
37 – 49 |
|
P722_KX5_ |
32 – 300 |
500 – 700 |
3500 – 5000 |
4 – 4.5 |
48 – 52 |
|
P821_KX8_ |
3 – 30 |
800 – 1400 |
2000 – 3000 |
4 – 6.5 |
84 – 142 |
|
P822_KX7_ |
32 – 300 |
1200 – 1600 |
3000 – 4000 |
4 – 4.5 |
148 – 168 |
|
P922_KX8_ |
32 – 300 |
2000 – 3000 |
2000 – 3000 |
4 – 4.5 |
255 – 327 |
