Shaft Designs


- Solid shaft with key
- Solid shaft without key
Bearing Design


- Normal bearings
- Reinforced bearings for higher axial load capacity (option)
- Reinforced bearings for higher radial load capacity (option)
Mounting Positions


- Any mounting position.
Lubricants and Maintenance


- Synthetic lubricant CLP HC ISO VG 150
- Lubricated for life
- Maintenance-free
Paint Finish


Black RAL 9005

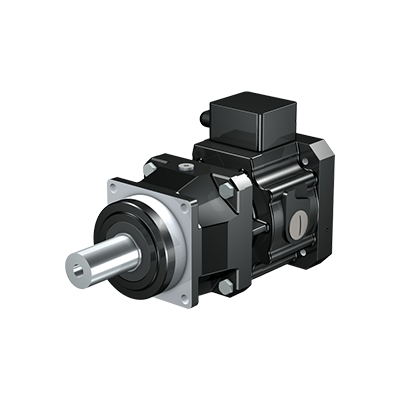

Motor Adapter MB


- Integrated static current brake.
- As single brake or - together with motor brake - as redundant braking system.
- Motor adapter for all common synchronous servo motors.
- Plug-in coupling for easy removal of the motor with braked axis in any position.
Enclosure Type


IP54, optional IP65
Electrical Connection


- Standard design with terminal box and integrated release monitoring.
- Optionally with connector, however not in conjunction with electrical monitoring.
Coil


- Coil connection 24 VDC
- Coil connection 104 VDC (Connection voltage 220 – 277 V, ± 5%, 50//60 Hz) with high-speed rectifier.
For details see Operating instructions Brake module MB ID 441846
Option Hand Release


With the hand release the brake can be released mechanically.
Recommendation Motor


EZ synchronous servo motors


For further information see Synchronous Servo Motors

Type	Ratio	Max. perm. acceleration torque [Nm]	Weight [kg]	Max. perm. input speed in cyclic operation [1/min]	Backlash [arcmin]	Torsional stiffness [Nm/arcmin]
P521	3 – 10	109 – 255	11	4000	3	8.9 – 21
P721	3 – 10	291 – 650	19	3700 – 4000	3	14 – 40
P722	12 – 70	428 – 700	20	4000	4	41 – 52
P821	3 – 10	953 – 1591	41 – 49	3000	3	21 – 123
P822	12 – 80	1140 – 1600	39	4000	4	102 – 162
P922	16 – 50	3000	76 – 83	3000	4	226 – 313
