Shaft Designs


Flange shaft
Bearing Design


Pretensioned angular contact bearings at the output in an O-arrangement, ideally suited for helical geared rack and pinion drive.
Mounting Positions


- Any mounting position.
Lubricants and Maintenance


- Synthetic lubricant CLP HC ISO VG 150
- Lubricated for life
- Maintenance-free
Paint Finish


Black RAL 9005

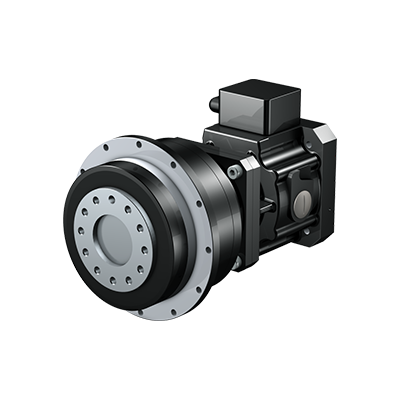

Motor Adapter MB


- Integrated static current brake.
- As single brake or - together with motor brake - as redundant braking system.
- Motor adapter for all common synchronous servo motors.
- Plug-in coupling for easy removal of the motor with braked axis in any position.
Enclosure Type


IP54, optional IP65
Electrical Connection


- Standard design with terminal box and integrated release monitoring.
- Optionally with connector, however not in conjunction with electrical monitoring.
Coil


- Coil connection 24 VDC
- Coil connection 104 VDC (Connection voltage 220 – 277 V, ± 5%, 50//60 Hz) with high-speed rectifier.
For details see Operating instructions Brake module MB ID 441846
Option Hand Release


With the hand release the brake can be released mechanically.
Recommendation Motor


EZ synchronous servo motors


For further information see Synchronous Servo Motors

Type	Ratio	Max. perm. acceleration torque [Nm]	Weight [kg]	Max. perm. input speed in cyclic operation [1/min]	Backlash [arcmin]	Torsional stiffness [Nm/arcmin]
PHA521	4 – 10	144 – 252	11	4000	1	17 – 39
PHA721	4 – 10	384 – 650	19	4000	1	28 – 74
PHA722	16 – 70	558 – 700	19	4000	1	97 – 138
PHA821	4 – 10	1200 – 1600	50	3000	1	39 – 143
PHA822	16 – 70	1488 – 2000	47	4000	1	242 – 404
PHA932	12 – 60	3655 – 5000	86 – 93	3000	1	289 – 975
