K Series

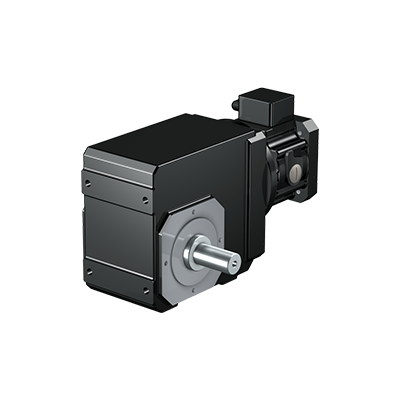

Versatile angular gear unit. Three backlash versions. For highest requirements. Hollow or solid shaft. Motor adapter with integrated holding brake and plug-in coupling.


  • 产品简介
  • 产品特点
  • 产品规格
  • 产品尺寸
  • 资料下载
Shaft design


- Solid shaft with key
- Solid shaft without key (K1 - K4, starting at K5 on request)
- Solid shaft on both sides
- Hollow shaft with keyway
- Hollow shaft with shrink ring
Housing Designs


- Pitch circle diameter
- Round flange
- Foot + pitch circle diameter
- Foot + round flange
- Pitch circle diameter + torque arm bracket
- Foot + pitch circle diameter + torque arm bracket
Backlash


- Standard
- Class II
- Class I
Mounting Positions


- Any mounting position.
- You can find the explanation of the mounting positions and the respective quantities of lubricant in the document Quantity of lubricant for gear units ID 441871
Lubricants and Maintenance


- Mineral lubricant CLP ISO VG 220
- Option: Synthetic lubricant CLP HC ISO VG 220


Under normal operating conditions no lubricant change is required for gear unit size K1 to K4 (lubricated for life).
We recommend a change of lubricant for gear unit size K5 to K10 after approx. 10,000 hours of operation.
Paint Finish


Black RAL 9005
Motor Adapter MB


- Integrated static current brake.
- As single brake or - together with motor brake - as redundant braking system.
- Motor adapter for all common synchronous servo motors.
- Plug-in coupling for easy removal of the motor with braked axis in any position.
Enclosure Type


IP54, optional IP65
Electrical Connection


- Standard design with terminal box and integrated release monitoring.
- Optionally with connector, however not in conjunction with electrical monitoring.
Coil


- Coil connection 24 VDC
- Coil connection 104 VDC (Connection voltage 220 – 277 V, ± 5%, 50//60 Hz) with high-speed rectifier.
For details see Operating instructions Brake module MB ID 441846
Option Hand Release


With the hand release the brake can be released mechanically.
Recommendation Motor


EZ synchronous servo motors


For further information see Synchronous Servo Motors

Type

Ratio

Max. perm. acceleration torque [Nm]

Weight [kg]

Max. perm. input speed in cyclic operation [1/min]

Backlash [arcmin]

Torsional stiffness [Nm/arcmin]

K102

4 – 18

93 – 135

17

4000

6 – 12

5.1 – 6.7

K202

4 – 28

146 – 220

25 – 30

4000

1.5 – 10

7.1 – 11

K302

4 – 46

146 – 385

30 – 35

3800 – 4000

1.5 – 10

9.2 – 16

K402

4 – 56

244 – 600

43 – 60

3000 – 4000

1.5 – 10

16 – 31

K513

7.3 – 97

521 – 1000

49 – 66

3000 – 4000

2 – 10

34 – 49

K613

7.3 – 95

615 – 1600

70 – 88

2900 – 4000

2 – 10

47 – 82

K713

7.6 – 99

1126 – 2600

104 – 116

2700 – 3800

2 – 10

68 – 125

K813

7.4 – 97

1523 – 4650

158 – 169

2600 – 3600

2 – 10

83 – 194

K913

13 – 95

2562 – 7700

284

2800 – 3000

5 – 10

197 – 373
