ZTRPH Series

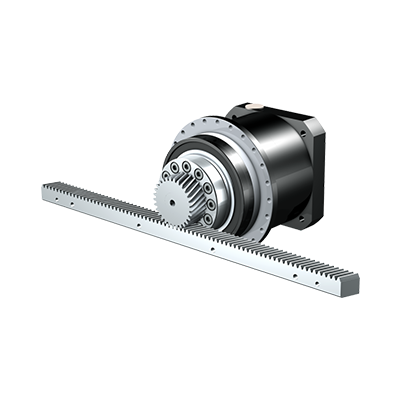

Precision for typical servo applications. Screwed flange pinion. Helical gearing. On request: reduced backlash, angular input, direct motor mounting.


  • 产品简介
  • 产品特点
  • 产品规格
  • 产品尺寸
  • 资料下载
Output pinion


- Gearing quality 5
- Case hardened and ground
- Optional concentricit≤ 10 µ
ZTR Output Pinion
ATLANTA Gear Racks


Our cooperation partner Atlanta offers matching gear racks for our products.
http://atlantagmbh.com/products/racks/


Mounting Positions


- Any mounting position.
Lubricants and Maintenance


Gear unit:
- Synthetic lubricant CLP HC ISO VG 150
- Lubricated for life
- Maintenance-free
Rack and pinion drive:
- Lubrication of the rack and pinion drive must be carried out by the customer.
- For this purpose, we recommend only the use of high quality synthetic oil based grease of NLGI grade 0.
Paint Finish


Black RAL 9005
Motor Adapter ME


- Universal motor mounting system for almost all synchronous servo motors.
- Option large (MEL) for large motors.
- Fast and secure motor mounting.
- Robust, balanced coupling.
- Thermal length compensation.
- Low mass inertia.
EasyAdapt
Option ServoStop


- Integrated in the motor adapter, electrically released spring-loaded brake.
- When the power is removed, in the event of a power failure or an emergency stop ServoStop will brake both drive and machine shaft safely and reliably.
- Zero-backlash plug-in coupling.
ServoStop Motor Adapter with Brake
Recommendation Motor


EZ synchronous servo motors


For further information see Synchronous Servo Motors

Type

Module [mm]

Teeth number

Max. perm. acceleration feed force [kN]

Max. feed velocity [m/s]

Linear backlash [μm]

ZTR2_PH421

2

12 – 16

5.8 – 6.7

0.8 – 2.2

11 – 15

ZTR2_PH422

2

12 – 16

5.8 – 6.7

0.11 – 0.72

11 – 15

ZTR2_PH521

2

12 – 23

6.7 – 10

0.8 – 3.2

11 – 21

ZTR3_PH521

3

12 – 14

9.3 – 10

1.2 – 2.9

17 – 19

ZTR2_PH522

2

12 – 23

6.7 – 10

0.09 – 0.96

11 – 21

ZTR3_PH522

3

12 – 14

9.3 – 10

0.14 – 0.88

17 – 19

ZTR2_PH721

2

12 – 23

6.7 – 15

0.67 – 2.6

11 – 21

ZTR3_PH721

3

16 – 19

17 – 19

1.3 – 3.2

22 – 26

ZTR4_PH721

4

12

19

1.3 – 2.7

22

ZTR2_PH722

2

12 – 23

6.7 – 15

0.09 – 0.8

11 – 21

ZTR3_PH722

3

16 – 19

17 – 19

0.17 – 0.99

22 – 26

ZTR4_PH722

4

12

19

0.17 – 0.83

22

ZTR3_PH821

3

19 – 32

21 – 25

1.3 – 4.7

26 – 44

ZTR4_PH821

4

17 – 20

28 – 35

1.5 – 3.9

31 – 37

ZTR5_PH821

5

12 – 18

25 – 34

1.3 – 4.4

28 – 42

ZTR6_PH821

6

15

25 – 30

2 – 4.4

42

ZTR3_PH822

3

19 – 32

21 – 25

0.19 – 1.5

26 – 44

ZTR4_PH822

4

17 – 20

28 – 35

0.23 – 1.3

31 – 37

ZTR5_PH822

5

12 – 18

25 – 34

0.2 – 1.4

28 – 42

ZTR6_PH822

6

15

25 – 30

0.3 – 1.4

42

ZTR5_PH932

5

18 – 19

63 – 67

0.38 – 1.3

42 – 44

ZTR6_PH932

6

16

56

0.4 – 1.3

44

ZTR6_PH1032

6

16

56

0.4 – 0.89

44

ZTR8_PH1032

8

12

60

0.4 – 0.89

44
