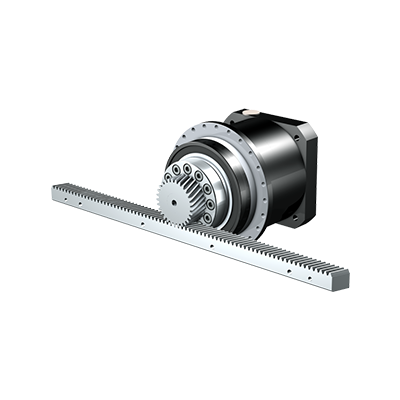

ZTRPHV Series
Precision for typical servo applications. For ratios > 60. Screwed flange pinion. Helical gearing. On request: angular input, direct motor mounting.
- 产品简介
- 产品特点
- 产品规格
- 产品尺寸
- 资料下载
Output pinion
- Gearing quality 5
- Case hardened and ground
- Optional concentricit≤ 10 µ
ZTR Output Pinion
ATLANTA Gear Racks
Our cooperation partner Atlanta offers matching gear racks for our products.
http://atlantagmbh.com/products/racks/
Mounting Positions
- Any mounting position.
Lubricants and Maintenance
Gear unit:
- Synthetic lubricant CLP HC ISO VG 150
- Lubricated for life
- Maintenance-free
Rack and pinion drive:
- Lubrication of the rack and pinion drive must be carried out by the customer.
- For this purpose, we recommend only the use of high quality synthetic oil based grease of NLGI grade 0.
Paint Finish
Black RAL 9005
Motor Adapter ME
- Universal motor mounting system for almost all synchronous servo motors.
- Option large (MEL) for large motors.
- Fast and secure motor mounting.
- Robust, balanced coupling.
- Thermal length compensation.
- Low mass inertia.
EasyAdapt
Option ServoStop
- Integrated in the motor adapter, electrically released spring-loaded brake.
- When the power is removed, in the event of a power failure or an emergency stop ServoStop will brake both drive and machine shaft safely and reliably.
- Zero-backlash plug-in coupling.
ServoStop Motor Adapter with Brake
Recommendation Motor
EZ synchronous servo motors
For further information see Synchronous Servo Motors
- Gearing quality 5
- Case hardened and ground
- Optional concentricit≤ 10 µ
ZTR Output Pinion
ATLANTA Gear Racks
Our cooperation partner Atlanta offers matching gear racks for our products.
http://atlantagmbh.com/products/racks/
Mounting Positions
- Any mounting position.
Lubricants and Maintenance
Gear unit:
- Synthetic lubricant CLP HC ISO VG 150
- Lubricated for life
- Maintenance-free
Rack and pinion drive:
- Lubrication of the rack and pinion drive must be carried out by the customer.
- For this purpose, we recommend only the use of high quality synthetic oil based grease of NLGI grade 0.
Paint Finish
Black RAL 9005
Motor Adapter ME
- Universal motor mounting system for almost all synchronous servo motors.
- Option large (MEL) for large motors.
- Fast and secure motor mounting.
- Robust, balanced coupling.
- Thermal length compensation.
- Low mass inertia.
EasyAdapt
Option ServoStop
- Integrated in the motor adapter, electrically released spring-loaded brake.
- When the power is removed, in the event of a power failure or an emergency stop ServoStop will brake both drive and machine shaft safely and reliably.
- Zero-backlash plug-in coupling.
ServoStop Motor Adapter with Brake
Recommendation Motor
EZ synchronous servo motors
For further information see Synchronous Servo Motors
|
Type |
Module [mm] |
Teeth number |
Max. perm. acceleration feed force [kN] |
Max. feed velocity [m/s] |
Linear backlash [μm] |
|
ZTR5_PHV933 |
5 |
18 – 19 |
63 – 67 |
0.19 – 0.39 |
42 – 44 |
|
ZTR6_PHV933 |
6 |
16 |
56 |
0.2 – 0.39 |
44 |
|
ZTR6_PHV1033 |
6 |
16 |
56 |
0.26 – 0.39 |
44 |
|
ZTR8_PHV1033 |
8 |
12 |
60 |
0.26 – 0.39 |
44 |
