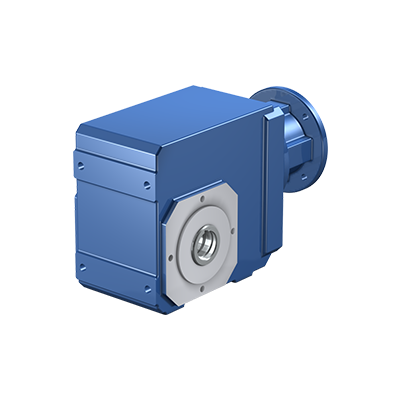

- Solid shaft with key
- Solid shaft without key (K1 - K4, starting at K5 on request)
- Solid shaft on both sides
- Hollow shaft with keyway
- Hollow shaft with shrink ring
Housing Designs
- Pitch circle diameter
- Round flange
- Foot + pitch circle diameter
- Foot + round flange
- Pitch circle diameter + torque arm bracket
- Foot + pitch circle diameter + torque arm bracket
Backlash
- Standard
- Class II
- Class I
Mounting Positions
- Any mounting position.
- You can find the explanation of the mounting positions and the respective quantities of lubricant in the document Quantity of lubricant for gear units ID 441871
Lubricants and Maintenance
- Mineral lubricant CLP ISO VG 220
- Option: Synthetic lubricant CLP HC ISO VG 220
Under normal operating conditions no lubricant change is required for gear unit size K1 to K4 (lubricated for life).
We recommend a change of lubricant for gear unit size K5 to K10 after approx. 10,000 hours of operation.
MR Motor Adapter
Round motor connection for IEC and NEMAC-C standard motors with choice of couplings:
- Backlash-free plug-in coupling
- Curved tooth coupling
Recommendation Motor
The asynchronous motor is designed for direct mounting.
For further information see Asynchronous Motors
|
Type |
Ratio |
Nominal torque on the gear unit output [Nm] |
Max. perm. input speed continuous operation [1/min] |
|
K102 |
4 – 70 |
41 – 120 |
3300 – 4000 |
|
K202 |
4 – 69 |
41 – 200 |
3000 – 4000 |
|
K203 |
39 – 272 |
132 – 200 |
4000 |
|
K302 |
4 – 69 |
87 – 350 |
2700 – 3800 |
|
K303 |
33 – 272 |
212 – 350 |
3500 – 3800 |
|
K402 |
4 – 69 |
238 – 550 |
2600 – 3500 |
|
K403 |
32 – 272 |
341 – 550 |
3500 – 3600 |
|
K513 |
7.3 – 97 |
492 – 900 |
1900 – 3400 |
|
K514 |
85 – 374 |
689 – 900 |
3400 |
|
K613 |
7.3 – 95 |
598 – 1450 |
1800 – 3100 |
|
K614 |
111 – 369 |
971 – 1450 |
3100 |
|
K713 |
7.6 – 99 |
1021 – 2400 |
1700 – 2900 |
|
K714 |
89 – 381 |
1626 – 2400 |
2900 |
|
K813 |
7.4 – 97 |
1396 – 4200 |
1600 – 2800 |
|
K814 |
67 – 311 |
2917 – 4200 |
2800 |
|
K913 |
7.9 – 95 |
3247 – 7000 |
1500 – 2600 |
|
K914 |
92 – 374 |
2388 – 7000 |
2600 |
|
K1013 |
16 – 94 |
6497 – 11172 |
1800 – 2500 |
|
K1014 |
149 – 290 |
8669 – 10727 |
2500 |
