KL Series

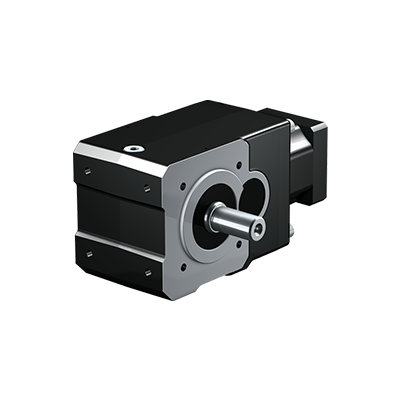

Small angular gear unit. No offset. Compact. Two-stage. Ratio 4 - 32. Short motor adapter length. Easy and secure motor mounting. Can be attached to almost any make of servo motor.
- 产品简介
- 产品特点
- 产品规格
- 产品尺寸
- 资料下载
Shaft design
- Solid shaft with key
- Solid shaft without key
- Solid shaft on both sides
- Hollow shaft with keyway
- Hollow shaft with shrink ring
Housing Designs
- Pitch circle diameter
- Flange
- Foot + pitch circle diameter
Mounting Positions
- Any mounting position.
Lubricants and Maintenance
- Mineral lubricant CLP ISO VG 220
- Option: Synthetic lubricant CLP HC ISO VG 220
- Lubricated for life
- Maintenance-free
Paint Finish
Black RAL 9005
MQ Motor Adapter
- Universal motor mounting system for almost all synchronous servo motors.
- Fast and secure motor mounting.
- Backlash-free plug-in coupling for motor shafts without key.
- Robust, balanced coupling.
- Thermal length compensation.
- Low mass inertia.
MQ Motor Adapter
Recommendation Motor
EZ synchronous servo motors
For further information see Synchronous Servo Motors
- Solid shaft with key
- Solid shaft without key
- Solid shaft on both sides
- Hollow shaft with keyway
- Hollow shaft with shrink ring
Housing Designs
- Pitch circle diameter
- Flange
- Foot + pitch circle diameter
Mounting Positions
- Any mounting position.
Lubricants and Maintenance
- Mineral lubricant CLP ISO VG 220
- Option: Synthetic lubricant CLP HC ISO VG 220
- Lubricated for life
- Maintenance-free
Paint Finish
Black RAL 9005
MQ Motor Adapter
- Universal motor mounting system for almost all synchronous servo motors.
- Fast and secure motor mounting.
- Backlash-free plug-in coupling for motor shafts without key.
- Robust, balanced coupling.
- Thermal length compensation.
- Low mass inertia.
MQ Motor Adapter
Recommendation Motor
EZ synchronous servo motors
For further information see Synchronous Servo Motors
|
Type |
Ratio |
Max. perm. acceleration torque [Nm] |
Max. perm. input speed in cyclic operation [1/min] |
Backlash [arcmin] |
Torsional stiffness [Nm/arcmin] |
|
KL102 |
4 – 32 |
22 – 32 |
5000 – 6000 |
20 – 25 |
0.99 – 1.8 |
|
KL202 |
4 – 32 |
50 – 65 |
5000 – 6000 |
16 – 20 |
1.8 – 3.9 |
