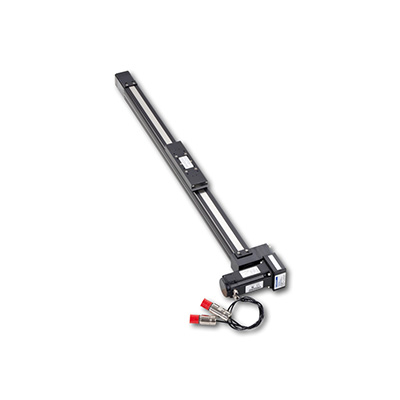

T22x, T31x科尔摩根混合步进电机（推荐使用P7000驱动器）
R2A-AKM23C、23D科尔摩根无刷AKM伺服电机
NEMA 23、NEMA 34定制电机底座
特点
轴承外壳：类型380铝压铸件，环氧树脂涂层滑动托架总成：6063-T6阳极氧化铝硬化外壳
梯形丝杠：直径为0.625"的合金钢丝杠；青铜螺母
带式驱动器：0.5"宽的聚氨酯以及钢筋
导向罩：6063-T6阳极氧化铝硬化外壳，聚四氟乙烯浸渍
螺旋齿轮：合金钢，表面硬化
滚珠丝杠：直径为0.625"的硬化合金钢丝杠；合金钢，热处理滚珠螺母
可选配件
标准或定制长度至.1 inches英制或公制滑动托架底座
电机或丝杠制动器
定位传感器
单滑动托架或双滑动托架
皮带式或螺旋式齿轮，并联或串联直接传动
防水保护
|
MECHANICAL SPECIFICATIONS |
Ball Screw |
Lead Screw |
Belt |
|
Max. Stroke Length, mm (in) |
1830 (72) |
||
|
Profile, mm (in) |
51 x 51 (2 x 2) |
||
|
Guide Type |
Roller Guides |
||
|
Screw Leads (in/rev) |
0.5, 0.2 |
0.2, 0.125 |
|
|
Screw Diameter (in/rev) |
0.625 |
0.625 |
|
|
Bearing |
4-Gothic arch raceway on dual precision rails |
||
|
PERFORMANCE SPECIFICATIONS |
Travel life standard: 25.4 km (1,000,000 in) |
||
|
Max. Thrust Force, N (lbf) |
450 (100) |
320 (72) |
|
|
Max. Velocity, mm/s (in/s) |
760 (30) |
2000 (80) |
|
|
Max. Carriage Load: |
|
||
|
Normal, N (lb) |
22 (5) |
||
|
Roll Moment, N-m (lb-in) |
5.6 (50) |
||
|
Pitch Moment, N-m (lb-in) |
11.3 (100) |
||
|
Repeatability, mm (in) |
+/-0.025 (0.001) |
+/-0.25 (0.010) |
|
|
Max Duty Cycle (%) |
100 |
60 |
100 |
|
Limit Sensors |
Optional |
Optional |
Optional |
|
Std. Operating Temp Range, °C (°F) |
-28 to +60 (-20 to +140) |
||
|
Environment |
IP 44 rated: Splash-proof, protected against ingress of solid particles greater than 0.040diameter. |
||
