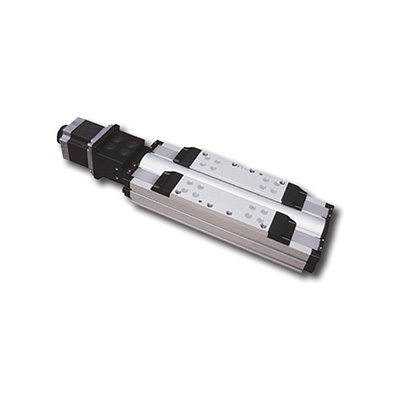

可选电机
T22x、T32x科尔摩根混合步进电机（推荐使用P7000驱动器）AKM23C、23D、42E、42G科尔摩根无刷AKM伺服电机
NEMA 17、NEMA 23、NEMA 34定制电机底座
特点
磁性不锈钢密封带可保护内部组件
精密加工的高强度铝型材高效滚珠丝杠
长轴承模块具有稳定、精确、平稳等运动功能
公制尺寸和安装功能
不锈钢方形轨道可延长寿命
可选配件
不锈钢方形轨道可延长寿命Bellows、Oldham联轴器
限位和起始传感器
线性编码器
安装板，支架
串联、并联电机方向
无尘室等级100
电机或轴制动器
|
Travel (mm) |
50 |
100 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
550 |
600 |
||
|
Overall Height (mm) |
47 |
|||||||||||||
|
Width (mm) |
95 |
|||||||||||||
|
Positional Accuracy (microns): |
|
|||||||||||||
|
Commercial Grade |
12 |
12 |
14 |
20 |
22 |
24 |
26 |
26 |
28 |
34 |
36 |
40 |
||
|
Precision Grade |
8 |
8 |
10 |
12 |
12 |
14 |
14 |
16 |
19 |
21 |
23 |
25 |
||
|
Straightness & Flatness (microns) |
6 |
6 |
9 |
12 |
12 |
14 |
18 |
21 |
23 |
23 |
25 |
25 |
||
|
Bi-Directional Repeatability, Open Loop: |
|
|||||||||||||
|
Commercial Grade (microns) |
+/- 3 |
|||||||||||||
|
Precision Grade (microns) |
+/-1 |
|||||||||||||
|
Pitch / Yaw (arc-sec): |
|
|||||||||||||
|
Commercial Grade |
20 |
24 |
28 |
36 |
40 |
44 |
47 |
53 |
56 |
61 |
64 |
68 |
||
|
Precision Grade |
12 |
14 |
17 |
22 |
25 |
27 |
29 |
33 |
35 |
38 |
40 |
42 |
||
|
Load Capacity, Normal (kg) (max) |
170 |
|||||||||||||
|
Axial Load Capacity (kg) |
95 |
|||||||||||||
|
Acceleration (max) (m/sec2) |
20 |
|||||||||||||
|
Moving Mass (kg) |
0.75 |
|||||||||||||
|
Total Mass (kg) |
2.7 |
3.0 |
3.3 |
3.6 |
3.9 |
4.1 |
4.4 |
4.7 |
5.0 |
5.3 |
5.6 |
5.9 |
||
|
Ballscrew Diameter (mm) |
16 |
|||||||||||||
|
Duty Cycle (%) |
100 |
|||||||||||||
|
Ballscrew Efficiency (%) |
90 |
|||||||||||||
|
Max. Breakaway Torque (oz-in) |
18 |
|||||||||||||
|
Max. Running Torque (oz-in) |
16 |
|||||||||||||
|
Ballscrew Leads Available (mm) |
5, 10 |
|||||||||||||
|
Input Inertia (x10-5 kg-m2) |
1.17 |
1.24 |
1.67 |
1.93 |
2.18 |
2.43 |
2.68 |
2.93 |
3.19 |
3.44 |
3.69 |
3.94 |
||
|
Max. Ballscrew Speed (rev/sec) |
|
|
80 |
|
|
60 |
55 |
|
50 |
|
||||
