Europe:
According to the European ordinance (EC) 640/2009 and (EU) 4/2014, all motors with a power of 0.75 kW to 325 kW and S1 operation must comply with efficiency level IE3.
Asynchronous motors up to 0.55 kW are not affected by the European ordinance (EC) 640/2009 and (EU) 4/2014.
USA:
Since 1 June 2016, there is an absolute CC labeling obligation for motors in the USA. The motors concerned are specified in EISA 2007 + DOE Amendment 10 CFR Part 431.
- CC number CC 301B for sizes 112 to 225
- Identification on the nameplate of the motor
Identifiers and Test Symbols
- CE
- cURus
- EISA CC number including cURus from 4 kW
Shaft Design

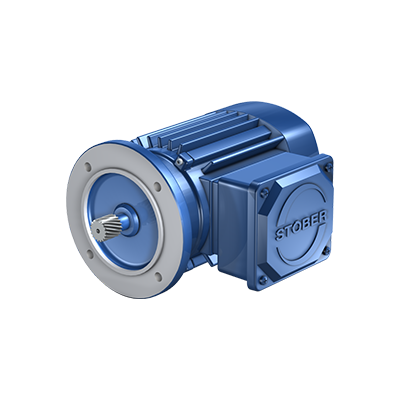

- Hollow shaft for pinion attachment for direct mounting to STOBER gear units
- IEC version
Motor Cooling
- Self-cooling with plastic fan wheel
- Forced ventilation (particularly recommended for frequency inverter operation at low speeds). Can be retrofitted - also on brake motors.
Motor Brake
- Spring-loaded brake
- Released electromagnetically
- The friction lining has a guide spline between brake rotor and hub and is asbestos-free.
Operating principle:
Braking is by spring force when the system is de-energised. The brake is released by an electromagnetic DC coil before the motor is powered up - or, when at rest, by a manual release device (option).
Encoder
- For vector-controlled drive controller operation use of an incremental encoder is provided for as standard.
- SSI multiturn absolute value encoder only in combination with forced ventilation.
Asynchronous Motor with Incremental Encoder
Terminal Box
Clearly designed and user-friendly terminal box for safe motor connection.
Drive Controller Recommendation
- POSIDRIVE FDS 5000 with power range 0.75 to 7.5 kW
- POSIDYN SDS 5000 with power range 0.75 to 45 kW
- SD6 with power range 0.75 kW to 45 kW
- SI6 with power range 0.75 kW to 25.9 kW
For further information see Drive Controllers.
|
Type |
Star/delta connection |
Nominal speed [1/min] |
Nominal torque motor [Nm] |
Nominal current [A] |
Nominal power [kW] |
Weight [kg] |
|
|
D063K04 |
K21R 63 K4 |
Y |
1370 |
0.84 |
0.44 |
0.12 |
4.8 |
|
D063K02 |
K21R 63 K2 |
Y |
2790 |
0.62 |
0.5 |
0.18 |
4.9 |
|
D063M04 |
K21R 63 G4 |
Y |
1360 |
1.3 |
0.65 |
0.18 |
5.2 |
|
D063M02 |
K21R 63 G2 |
Y |
2800 |
0.85 |
0.74 |
0.25 |
5.2 |
|
D071K04 |
K21R 71 K4 |
Y |
1385 |
1.7 |
0.78 |
0.25 |
6.8 |
|
D071K02 |
K21R 71 K2 |
Y |
2780 |
1.3 |
0.94 |
0.37 |
6.7 |
|
D071L04 |
K21R 71 G4 |
Y |
1370 |
2.6 |
1.1 |
0.37 |
7.8 |
|
D071L02 |
K21R 71 G2 |
Y |
2775 |
1.9 |
1.3 |
0.55 |
7.6 |
|
D080K04 |
K21R 80 K4 |
Y |
1400 |
3.8 |
1.6 |
0.55 |
10.6 |
|
IE3D080K02 |
IE3-W42R 80 K2 |
Y |
2870 |
2.5 |
1.7 |
0.75 |
11.5 |
|
IE3D080L04 |
IE3-W41R 80 G4 |
Y |
1445 |
5 |
1.7 |
0.75 |
17 |
|
IE3D080L02 |
IE3-W41R 80 GY2 |
Y |
2870 |
3.7 |
2.2 |
1.1 |
15 |
|
IE3D090S04 |
IE3-W41R 90 SY4 |
Y |
1440 |
7.3 |
2.5 |
1.1 |
22.5 |
|
IE3D090S02 |
IE3-W42R 90 S2 |
Y |
2900 |
4.9 |
3.1 |
1.5 |
19 |
|
IE3D090L04 |
IE3-W41R 90 L4 |
Y |
1445 |
9.9 |
3.4 |
1.5 |
28 |
|
IE3D090L02 |
IE3-W41R 90 LY2 |
Y |
2880 |
7.3 |
4.3 |
2.2 |
23.5 |
|
IE3D100K04 |
IE3-W41R 100 LY4 |
Y |
1455 |
14 |
4.8 |
2.2 |
36 |
|
IE3D100L02 |
IE3-W41R 100 LY2 |
Y |
2920 |
9.8 |
6 |
3 |
31 |
|
IE3D100L04 |
IE3-W41R 100 LZ4 |
Y |
1455 |
20 |
6.4 |
3 |
45 |
|
IE3D112M02 |
IE3-W41R 112 MY2 |
Δ |
2920 |
13 |
7.9 |
4 |
38 |
|
IE3D112M04 |
IE3-W41R 112 MW4 |
Δ |
1465 |
26 |
7.9 |
4 |
56 |
|
IE3D132S04 |
IE3-W41R 132 S4 |
Δ |
1480 |
35 |
12 |
5.5 |
90 |
|
IE3D132M04 |
IE3-W41R 132 M4 |
Δ |
1475 |
49 |
15 |
7.5 |
100 |
|
IE3D160M04 |
IE3-W41R 160 M4 |
Δ |
1475 |
71 |
21 |
11 |
125 |
|
IE3D160L04 |
IE3-W41R 160 L4C |
Δ |
1490 |
96 |
28 |
15 |
175 |
|
IE3D180M04 |
IE3-W41R 180 M4 |
Δ |
1475 |
120 |
35 |
19 |
210 |
|
IE3D180L04 |
IE3-W41R 180 L4 |
Δ |
1480 |
142 |
41 |
22 |
240 |
|
IE3D200L04 |
IE3-W41R 200 L4C |
Δ |
1485 |
193 |
55 |
30 |
327 |
|
IE3D225S04 |
IE3-W41R 225 S4C |
Δ |
1490 |
237 |
67 |
37 |
367 |
|
IE3D225M04 |
IE3-W41R 225 M4 |
Δ |
1482 |
290 |
84 |
45 |
450 |
