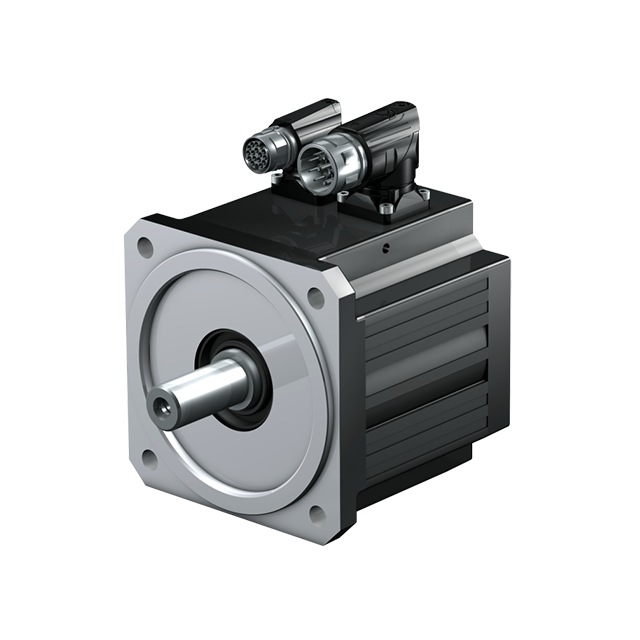

EZ Series
Extremely compact. Highest power per unit volume. Large torque. High dynamic.


  • 产品简介
  • 产品特点
  • 产品规格
  • 产品尺寸
  • 资料下载
Extremely compact. Highest power per unit volume. Large torque. High dynamic.
Shaft Design

- Solid shaft without feather key
- Hollow shaft for pinion attachment for direct mounting to STOBER servo gear units
Hollow Shaft with Pinion for Direct Mounting
External Fan

- According to DIN EN 60034-6, IC416
- To increase torque and continuous performance.
- In case of higher surrounding temperatures.
- Also available as a retrofit kit.
External Fan
Motor Brake

Optionally the motor b-side can be equipped with a permanent magnet holding brake.
EZ Brake
Power and Encoder Interface


- Rotating plug connectors with quick lock.
- Option: Supplied with mating connectors.
EZ Connection Method
Encoder


- Optical or inductive measuring principle
- High system accuracy with up to 23 bits resolution
- Up to 4096 recordable resolutions in multiturn version
- Electronic nameplate ensures fast and easy commissioning
- Compatible with STOBER drive controllers and drive controllers of many third-party manufacturers
Resolver
- High temperature resistance
- High vibration strength and shock resistance
Power and Encoder Interface One Cable Solution (OCS)

- Rotating plug connector with quick lock (connection lines between the encoder and drive controller are routed along in the motor's power cable).
- Option: Supplied with mating connector.
EZ Connection Method (OCS)
Encoder One Cable Solution (OCS)

HIPERFACE DSL One Cable Solution (OCS)
- Significantly reduced wiring effort by eliminating the encoder cable
- Significantly reduced space requirements by eliminating the encoder plug connector
- High system accuracy with up to 20 bits resolution
- Up to 4096 recordable resolutions in multiturn version
- Electronic nameplate ensures fast and easy commissioning
- Additional information transferred with the position value
Winding Protection

PTC thermistors are installed in STOBER synchronous servo motors as a configuration feature to implement thermal winding protection. This makes it possible for the motor to exceed the maximum permitted winding temperature with the appropriate devices turned off.
Paint Finish

- Housing and connector black RAL 9005
- Motor cover b-side magenta RAL 4010
Drive Controller Recommendation

- POSIDRIVE MDS 5000 with power range 0.75 to 45 kW
- POSIDYN SDS 5000 with power range 0.75 to 45 kW
- SD6 with power range 0.75 kW to 45 kW
- SI6 with power range 0.75 kW to 25.9 kW
For further information see Drive Controllers
Type Nominal speed [1/min] Nominal torque [Nm] Nominal current [A] Stall torque [Nm] Nominal power [kW] Maximum torque [Nm] Mass moment of inertia dynamic [kgcm²]
EZ301 3000 – 6000 0,89 – 0,93 1,93 – 1,99 0,95 0,29 – 0,56 2,8 0,19
EZ302 3000 – 6000 1,5 – 1,59 1,6 – 3,18 1,68 0,5 – 0,94 5 0,29
EZ303 3000 – 6000 1,96 – 2,07 1,63 – 3,17 2,19 – 2,25 0,65 – 1,2 7 0,4
EZ401 3000 – 6000 2,3 – 3,4 2,74 – 5,62 2,8 – 3,7 0,88 – 1,8 8,5 0,93
EZ402 3000 – 6000 3,5 – 5,9 4,4 – 7,88 4,9 – 6,4 1,5 – 3,2 16 1,63
EZ404 3000 – 6000 8 – 10,2 5,8 – 9,98 8,6 – 10,5 2,2 – 5 29 2,98
EZ501 3000 – 6000 3,4 – 5,4 3,74 – 6,7 4,4 – 5,8 1,4 – 2,8 16 2,9
EZ502 3000 – 6000 8,2 – 10,3 7,8 – 11,4 8 – 10,5 2,3 – 5,2 31 5,2
EZ503 3000 – 6000 9,7 – 10,4 7,64 – 10,9 10,6 – 15,9 3,1 – 6,5 43 7,58
EZ505 3000 – 4500 9,5 – 13,5 8,94 – 13,7 15,3 – 23,4 4,2 – 7,7 67 12,2
EZ701 3000 – 6000 5,2 – 9,7 9,5 – 10,6 8,3 – 10,2 2,3 – 4,7 20 8,5
EZ702 3000 – 6000 7,2 – 12 8,96 – 11,8 14,3 – 19,3 3,8 – 7,9 41 13,7
EZ703 3000 – 4500 12,1 – 24 11,4 – 20,3 20 – 28 5,2 – 9,3 65 21,6
EZ705 3000 – 4500 16,4 – 33,8 14,2 – 25,4 30 – 41,8 7,7 – 11 104 34
EZ802 3000 – 4500 10,5 – 34,3 11,2 – 30,5 34,5 – 47,9 7 – 11 100 58
EZ803 3000 26,6 – 49 17,7 – 35,9 48,2 – 66,7 8,4 – 15 145 83,5
EZ805 2000 43,7 – 77,2 25,9 – 45,2 66,1 – 94 9,2 – 16 205 133
