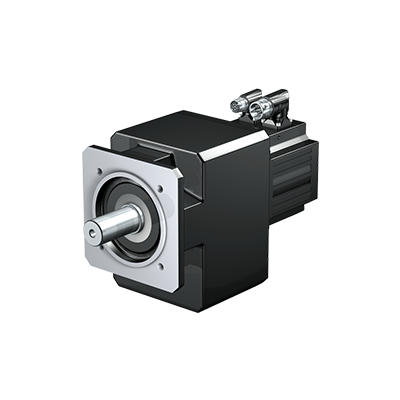

C Series
Many housing styles to match almost any mounting requirement. Helical gearing. Robust solid shaft. Synchronous servo motor EZ. Extremely compact. Highest power per unit volume. Large torque. High dynamic.


  • 产品简介
  • 产品特点
  • 产品规格
  • 产品尺寸
  • 资料下载
Shaft Designs


- Solid shaft with key
- Solid shaft without key (C0 - C5, starting at C6 on request)
Housing Designs


- Pitch circle diameter
- Round flange
- Square flange
- Foot
Mounting Positions


- Any mounting position.
- You can find the explanation of the mounting positions and the respective quantities of lubricant in the document Quantity of lubricant for gear units ID 441871
Lubricants and Maintenance


- Mineral lubricant CLP ISO VG 220
- Option: Synthetic lubricant CLP HC ISO VG 220


Under normal operating conditions no lubricant change is required for gear unit size C0 to C5 (lubricated for life).
We recommend a change of lubricant for gear unit size C6 to C9 after approx. 10,000 hours of operation.
Paint Finish


- Housing and connector black RAL 9005
- Motor cover b-side magenta RAL 4010
Synchronous Servo Motor EZ


- Extremely compact.
- Highest power per unit volume.
- Large torque.
- High dynamic.
Synchronous Servo Motor EZ
External Fan


- According to DIN EN 60034-6, IC416
- To increase torque and continuous performance.
- In case of higher surrounding temperatures.
- Also available as a retrofit kit.
External Fan
Motor Brake


Optionally the motor b-side can be equipped with a permanent magnet holding brake.
EZ Brake
Encoder


- Optical or inductive measuring principle
- High system accuracy with up to 23 bits resolution
- Up to 4096 recordable resolutions in multiturn version
- Electronic nameplate ensures fast and easy commissioning
- Compatible with STOBER drive controllers and drive controllers of many third-party manufacturers
Resolver
- High temperature resistance
- High vibration strength and shock resistance
Power and Encoder Interface


- Rotating plug connectors with quick lock.
- Option: Supplied with mating connectors.
EZ Connection Method
Encoder One Cable Solution (OCS)


HIPERFACE DSL One Cable Solution (OCS)
- Significantly reduced wiring effort by eliminating the encoder cable
- Significantly reduced space requirements by eliminating the encoder plug connector
- High system accuracy with up to 20 bits resolution
- Up to 4096 recordable resolutions in multiturn version
- Electronic nameplate ensures fast and easy commissioning
- Additional information transferred with the position value
Power and Encoder Interface One Cable Solution (OCS)


- Rotating plug connector with quick lock (connection lines between the encoder and drive controller are routed along in the motor's power cable).
- Option: Supplied with mating connector.
EZ Connection Method (OCS)
Winding Protection


PTC thermistors are installed in STOBER synchronous servo motors as a configuration feature to implement thermal winding protection. This makes it possible for the motor to exceed the maximum permitted winding temperature with the appropriate devices turned off.
Drive Controller Recommendation


- POSIDRIVE MDS 5000 with power range 0.75 to 45 kW
- POSIDYN SDS 5000 with power range 0.75 to 45 kW
- SD6 with power range 0.75 kW to 45 kW
- SI6 with power range 0.75 kW to 25.9 kW
For further information see Drive Controllers

Type

Ratio

Max. perm. acceleration torque [Nm]

Stall torque on the gear unit output [Nm]

Max. perm. input speed in cyclic operation [1/min]

Backlash [arcmin]

Torsional stiffness [Nm/arcmin]

C002

2 – 50

9.7 – 72

3.3 – 55

6000

16 – 20

1.3 – 1.6

C102

2 – 70

19 – 138

6.3 – 106

5000 – 6000

15 – 18

3.1 – 3.9

C103

82 – 111

138

74 – 101

6000

15

3.9

C202

2 – 70

52 – 230

22 – 177

4500 – 6000

14 – 17

6 – 8.3

C203

81 – 92

230

129 – 173

6000

14

8.3

C302

2 – 62

114 – 400

43 – 309

4000 – 5500

13 – 16

7.1 – 8.7

C303

81 – 137

350 – 400

131 – 264

5500

13

8.7

C402

2 – 70

155 – 600

54 – 462

3500 – 5000

12 – 15

17 – 22

C403

81 – 90

550 – 600

363 – 406

5000

12

22

C502

2 – 70

184 – 920

65 – 698

3000 – 4500

12 – 14

21 – 23

C503

81 – 135

850 – 920

362 – 616

4500

12

23

C612

4.2 – 69

629 – 1650

261 – 1257

2800 – 4000

10

74

C613

49 – 213

913 – 1650

341 – 1262

4000

10

74

C712

8.5 – 70

796 – 2760

330 – 1918

3100 – 3600

10

122

C713

51 – 223

1548 – 2760

642 – 1822

3600

10

122

C812

17 – 69

2528 – 4800

938 – 2920

3200 – 3400

10

145 – 204

C813

49 – 270

1517 – 4800

630 – 3600

3400

10

204

C913

78 – 110

5628 – 6500

2757 – 3917

3200

10

393
