PHK Series

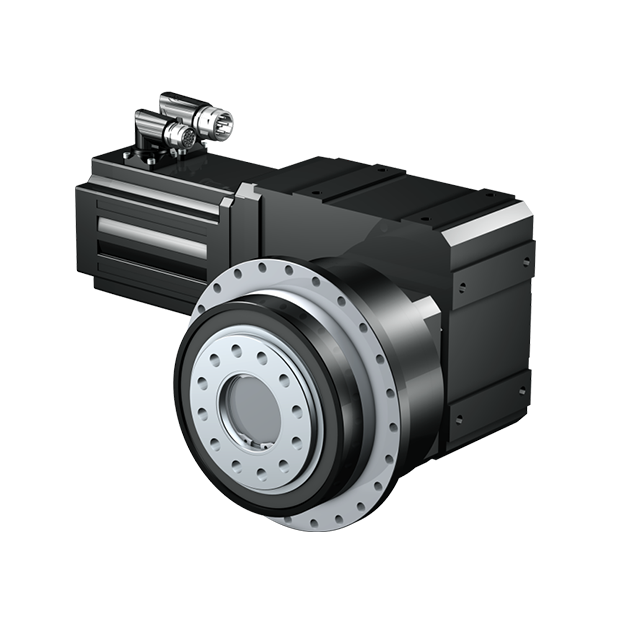

Highly rigid drive unit made up of an input multistage angular gear unit and a robust planetary output stage. Flange output shaft. Synchronous servo motor EZ. Extremely compact. Highest power per unit volume. Large torque. High dynamic.


  • 产品简介
  • 产品特点
  • 产品规格
  • 产品尺寸
  • 资料下载
Highly rigid drive unit made up of an input multistage angular gear unit and a robust planetary output stage. Flange output shaft. Synchronous servo motor EZ. Extremely compact. Highest power per unit volume. Large torque. High dynamic.
Shaft designs
- Flange shaft
Output available on side 3 or 4.
Output Side
Bearing Design

Pretensioned angular contact bearings at the output in an O-arrangement, ideally suited for helical geared rack and pinion drive.
Mounting Positions

- Any mounting position.
- You can find the explanation of the mounting positions and the respective quantities of lubricant in the document Quantity of lubricant for gear units ID 441871
Lubricants and Maintenance

- Synthetic lubricant CLP HC ISO VG 150
- Lubricated for life
- Maintenance-free
Paint Finish

- Housing and connector black RAL 9005
- Motor cover b-side magenta RAL 4010
Synchronous Servo Motor EZ

- Extremely compact.
- Highest power per unit volume.
- Large torque.
- High dynamic.
Synchronous Servo Motor EZ
External Fan

- According to DIN EN 60034-6, IC416
- To increase torque and continuous performance.
- In case of higher surrounding temperatures.
- Also available as a retrofit kit.
External Fan
Motor Brake

Optionally the motor b-side can be equipped with a permanent magnet holding brake.
EZ Brake
Encoder


- Optical or inductive measuring principle
- High system accuracy with up to 23 bits resolution
- Up to 4096 recordable resolutions in multiturn version
- Electronic nameplate ensures fast and easy commissioning
- Compatible with STOBER drive controllers and drive controllers of many third-party manufacturers
Resolver
- High temperature resistance
- High vibration strength and shock resistance
Power and Encoder Interface

- Rotating plug connectors with quick lock.
- Option: Supplied with mating connectors.
EZ Connection Method
Encoder One Cable Solution (OCS)

HIPERFACE DSL One Cable Solution (OCS)
- Significantly reduced wiring effort by eliminating the encoder cable
- Significantly reduced space requirements by eliminating the encoder plug connector
- High system accuracy with up to 20 bits resolution
- Up to 4096 recordable resolutions in multiturn version
- Electronic nameplate ensures fast and easy commissioning
- Additional information transferred with the position value
Power and Encoder Interface One Cable Solution (OCS)

- Rotating plug connector with quick lock (connection lines between the encoder and drive controller are routed along in the motor's power cable).
- Option: Supplied with mating connector.
EZ Connection Method (OCS)
Winding Protection

PTC thermistors are installed in STOBER synchronous servo motors as a configuration feature to implement thermal winding protection. This makes it possible for the motor to exceed the maximum permitted winding temperature with the appropriate devices turned off.
Drive Controller Recommendation

- POSIDRIVE MDS 5000 with power range 0.75 to 45 kW
- POSIDYN SDS 5000 with power range 0.75 to 45 kW
- SD6 with power range 0.75 kW to 45 kW
- SI6 with power range 0.75 kW to 25.9 kW
For further information see Drive Controllers
Type Ratio Max. perm. acceleration torque [Nm] Stall torque on the gear unit output [Nm] Max. perm. input speed in cyclic operation [1/min] Backlash [arcmin] Torsional stiffness [Nm/arcmin]
PH521_K1_ 16 – 235 89 – 320 33 – 244 4500 – 6000 4 – 4,5 52 – 60
PH721_K1_ 28 – 393 156 – 650 57 – 479 4500 – 6000 3,5 – 4 100 – 108
PH721_K2_ 16 – 278 127 – 700 45 – 501 4000 – 5500 4 – 4,5 89 – 109
PH821_K2_ 28 – 486 222 – 1478 78 – 1139 4000 – 5500 3,5 244 – 248
PH821_K3_ 16 – 279 501 – 1848 208 – 1350 3800 – 5000 4 186 – 239
PH931_K5_ 33 – 466 1772 – 4500 736 – 3399 3000 – 4500 4 – 4,5 525 – 730
PH1031_K6_ 49 – 457 3508 – 7500 1456 – 5776 2900 – 4000 4 1210
