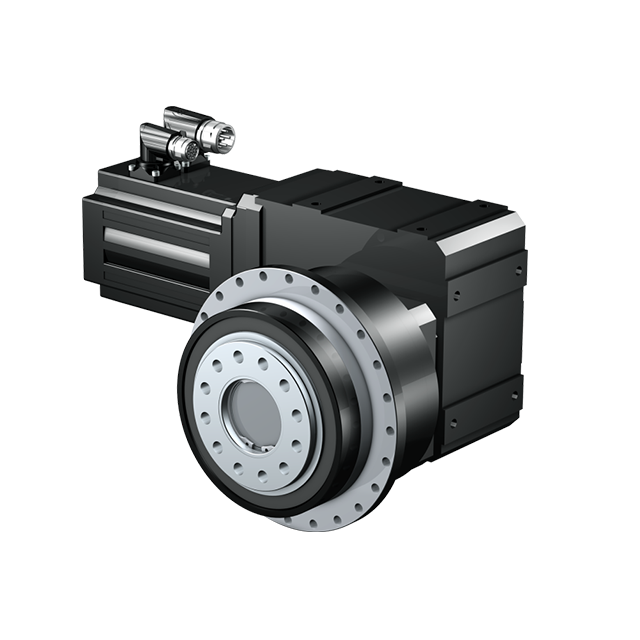

PHQK Series
Quattro power due to four-planet system. Highly rigid drive unit made up of an input multistage right-angle gear unit and a robust planetary output stage. Flange output shaft. Synchronous servo motor EZ. Extremely compact. Highest power per unit volume. Large torque. High dynamic.


  • 产品简介
  • 产品特点
  • 产品规格
  • 产品尺寸
  • 资料下载
Quattro power due to four-planet system. Highly rigid drive unit made up of an input multistage right-angle gear unit and a robust planetary output stage. Flange output shaft. Synchronous servo motor EZ. Extremely compact. Highest power per unit volume. Large torque. High dynamic.
Shaft designs
- Flange shaft
Output available on side 3 or 4.
Output Side
Bearing Design

Pretensioned angular contact bearings at the output in an O-arrangement, ideally suited for helical geared rack and pinion drive.
Mounting Positions

- Any mounting position.
- You can find the explanation of the mounting positions and the respective quantities of lubricant in the document Quantity of lubricant for gear units ID 441871
Lubricants and Maintenance

- Synthetic lubricant CLP HC ISO VG 150
- Lubricated for life
- Maintenance-free
Paint Finish

- Housing and connector black RAL 9005
- Motor cover b-side magenta RAL 4010
Synchronous Servo Motor EZ

- Extremely compact.
- Highest power per unit volume.
- Large torque.
- High dynamic.
Synchronous Servo Motor EZ
External Fan

- According to DIN EN 60034-6, IC416
- To increase torque and continuous performance.
- In case of higher surrounding temperatures.
- Also available as a retrofit kit.
External Fan
Motor Brake

Optionally the motor b-side can be equipped with a permanent magnet holding brake.
EZ Brake
Encoder

- Optical or inductive measuring principle
- High system accuracy with up to 23 bits resolution
- Up to 4096 recordable resolutions in multiturn version
- Electronic nameplate ensures fast and easy commissioning
- Compatible with STOBER drive controllers and drive controllers of many third-party manufacturers
Resolver
- High temperature resistance
- High vibration strength and shock resistance
Power and Encoder Interface

- Rotating plug connectors with quick lock.
- Option: Supplied with mating connectors.
EZ Connection Method
Encoder One Cable Solution (OCS)


HIPERFACE DSL One Cable Solution (OCS)
- Significantly reduced wiring effort by eliminating the encoder cable
- Significantly reduced space requirements by eliminating the encoder plug connector
- High system accuracy with up to 20 bits resolution
- Up to 4096 recordable resolutions in multiturn version
- Electronic nameplate ensures fast and easy commissioning
- Additional information transferred with the position value
Power and Encoder Interface One Cable Solution (OCS)

- Rotating plug connector with quick lock (connection lines between the encoder and drive controller are routed along in the motor's power cable).
- Option: Supplied with mating connector.
EZ Connection Method (OCS)
Winding Protection

PTC thermistors are installed in STOBER synchronous servo motors as a configuration feature to implement thermal winding protection. This makes it possible for the motor to exceed the maximum permitted winding temperature with the appropriate devices turned off.
Drive Controller Recommendation

- POSIDRIVE MDS 5000 with power range 0.75 to 45 kW
- POSIDYN SDS 5000 with power range 0.75 to 45 kW
- SD6 with power range 0.75 kW to 45 kW
- SI6 with power range 0.75 kW to 25.9 kW
For further information see Drive Controllers
Type Ratio Max. perm. acceleration torque [Nm] Stall torque on the gear unit output [Nm] Max. perm. input speed in cyclic operation [1/min] Backlash [arcmin] Torsional stiffness [Nm/arcmin]
PHQ521_K1_ 22 – 309 123 – 425 45 – 317 4500 – 6000 4 70
PHQ721_K2_ 22 – 382 174 – 950 61 – 722 4000 – 5500 4 136
PHQ821_K4_ 22 – 381 946 – 2600 393 – 1981 3500 – 5000 3,5 400
PHQ931_K5_ 44 – 580 2131 – 5760 885 – 4413 3000 – 4500 4 771
PHQ1031_K7_ 45 – 591 3903 – 10000 1620 – 7492 2700 – 3800 4 1561
PHQ1131_K8_ 89 – 583 7897 – 22000 3277 – 16218 2900 – 3600 4 2623
PHQ1231_K9_ 144 – 2242 13636 – 43000 5659 – 32363 3100 – 3400 4 4665
