K Series

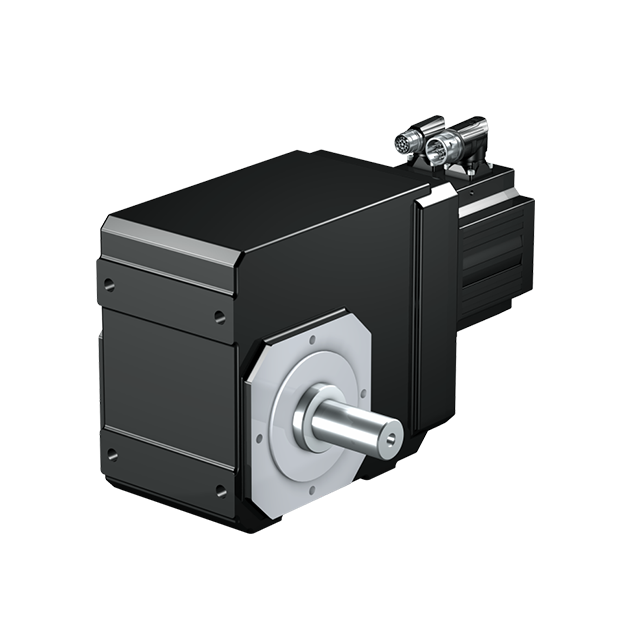

Versatile angular gear unit. Three backlash versions. For highest requirements. Hollow or solid shaft. Synchronous servo motor EZ. Extremely compact. Highest power per unit volume. Large torque. High dynamic.


  • 产品简介
  • 产品特点
  • 产品规格
  • 产品尺寸
  • 资料下载
Versatile angular gear unit. Three backlash versions. For highest requirements. Hollow or solid shaft. Synchronous servo motor EZ. Extremely compact. Highest power per unit volume. Large torque. High dynamic.
Shaft design

- Solid shaft with key
- Solid shaft without key (K1 - K4, starting at K5 on request)
- Solid shaft on both sides
- Hollow shaft with keyway
- Hollow shaft with shrink ring
Housing Designs

- Pitch circle diameter
- Round flange
- Foot + pitch circle diameter
- Foot + round flange
- Pitch circle diameter + torque arm bracket
- Foot + pitch circle diameter + torque arm bracket
Backlash

- Standard
- Class II
- Class I
Mounting Positions

- Any mounting position.
- You can find the explanation of the mounting positions and the respective quantities of lubricant in the document Quantity of lubricant for gear units ID 441871
Lubricants and Maintenance

- Mineral lubricant CLP ISO VG 220
- Option: Synthetic lubricant CLP HC ISO VG 220

Under normal operating conditions no lubricant change is required for gear unit size K1 to K4 (lubricated for life).
We recommend a change of lubricant for gear unit size K5 to K10 after approx. 10,000 hours of operation.
Paint Finish

- Housing and connector black RAL 9005
- Motor cover b-side magenta RAL 4010
Synchronous Servo Motor EZ

- Extremely compact.
- Highest power per unit volume.
- Large torque.
- High dynamic.
Synchronous Servo Motor EZ
External Fan

- According to DIN EN 60034-6, IC416
- To increase torque and continuous performance.
- In case of higher surrounding temperatures.
- Also available as a retrofit kit.
External Fan
Motor Brake

Optionally the motor b-side can be equipped with a permanent magnet holding brake.
EZ Brake
Encoder


- Optical or inductive measuring principle
- High system accuracy with up to 23 bits resolution
- Up to 4096 recordable resolutions in multiturn version
- Electronic nameplate ensures fast and easy commissioning
- Compatible with STOBER drive controllers and drive controllers of many third-party manufacturers
Resolver
- High temperature resistance
- High vibration strength and shock resistance
Power and Encoder Interface

- Rotating plug connectors with quick lock.
- Option: Supplied with mating connectors.
EZ Connection Method
Encoder One Cable Solution (OCS)

HIPERFACE DSL One Cable Solution (OCS)
- Significantly reduced wiring effort by eliminating the encoder cable
- Significantly reduced space requirements by eliminating the encoder plug connector
- High system accuracy with up to 20 bits resolution
- Up to 4096 recordable resolutions in multiturn version
- Electronic nameplate ensures fast and easy commissioning
- Additional information transferred with the position value
Power and Encoder Interface One Cable Solution (OCS)

- Rotating plug connector with quick lock (connection lines between the encoder and drive controller are routed along in the motor's power cable).
- Option: Supplied with mating connector.
EZ Connection Method (OCS)
Winding Protection

PTC thermistors are installed in STOBER synchronous servo motors as a configuration feature to implement thermal winding protection. This makes it possible for the motor to exceed the maximum permitted winding temperature with the appropriate devices turned off.
Drive Controller Recommendation

- POSIDRIVE MDS 5000 with power range 0.75 to 45 kW
- POSIDYN SDS 5000 with power range 0.75 to 45 kW
- SD6 with power range 0.75 kW to 45 kW
- SI6 with power range 0.75 kW to 25.9 kW
For further information see Drive Controllers
Type Ratio Max. perm. acceleration torque [Nm] Stall torque on the gear unit output [Nm] Max. perm. input speed in cyclic operation [1/min] Backlash [arcmin] Torsional stiffness [Nm/arcmin]
K102 4 – 56 23 – 135 8,5 – 102 4500 – 6000 6 – 12 6,8
K202 4 – 69 33 – 220 12 – 170 4000 – 5500 1,5 – 10 11
K203 39 – 181 189 – 217 63 – 167 5500 2,5 – 10 11
K302 4 – 69 104 – 385 43 – 290 3800 – 5000 1,5 – 10 16
K303 33 – 181 235 – 379 79 – 291 5000 2,5 – 10 16
K402 4 – 69 179 – 600 74 – 456 3500 – 5000 1,5 – 10 31
K403 32 – 218 317 – 591 107 – 414 5000 2,5 – 10 31
K513 7,3 – 97 466 – 1000 193 – 766 3000 – 4500 2 – 10 50
K514 85 – 168 1000 376 – 744 4500 3 – 10 50
K613 7,3 – 95 662 – 1600 236 – 1228 2900 – 4000 2 – 10 83
K614 111 – 266 1448 – 1600 492 – 1176 4000 3 – 10 83
K713 7,6 – 99 1120 – 2600 427 – 1872 2700 – 3800 2 – 10 126
K714 89 – 381 1626 – 2600 606 – 1984 3800 3 – 10 126
K813 15 – 97 1371 – 4650 569 – 3304 2900 – 3600 2 – 10 196
K814 67 – 311 2156 – 4650 895 – 3472 3600 3 – 10 196
K913 38 – 95 4678 – 7700 1736 – 4740 3400 5 – 10 379
K914 92 – 374 2367 – 7700 982 – 5619 3400 5 – 10 379
K1014 149 – 290 10624 – 13200 5198 – 10136 3200 5 – 10 725
